Bema7

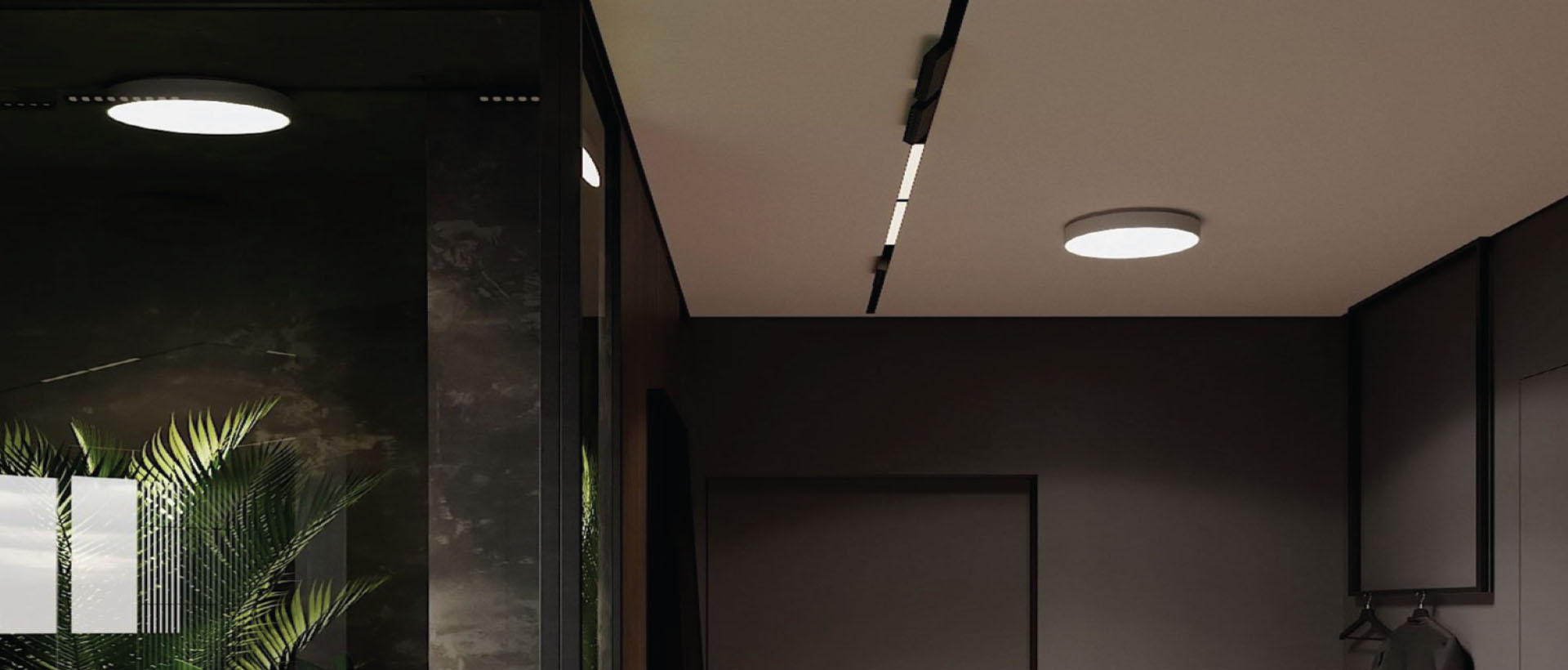

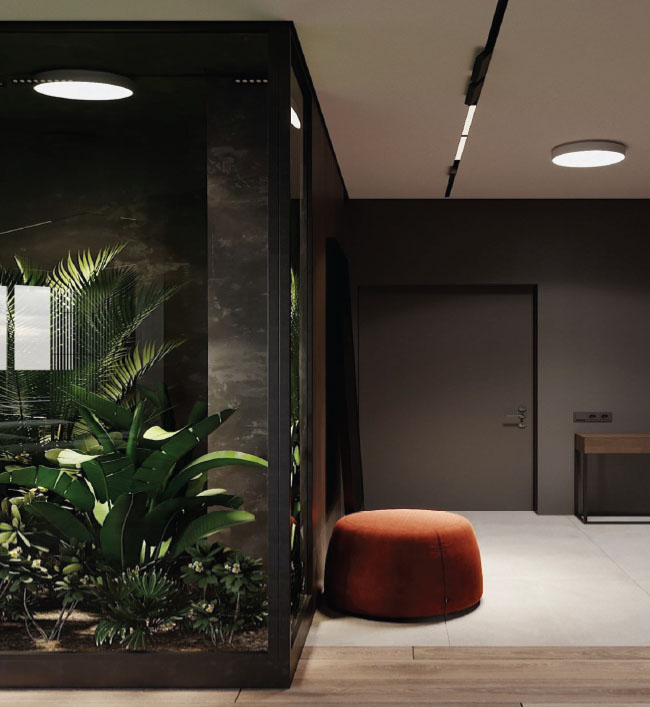

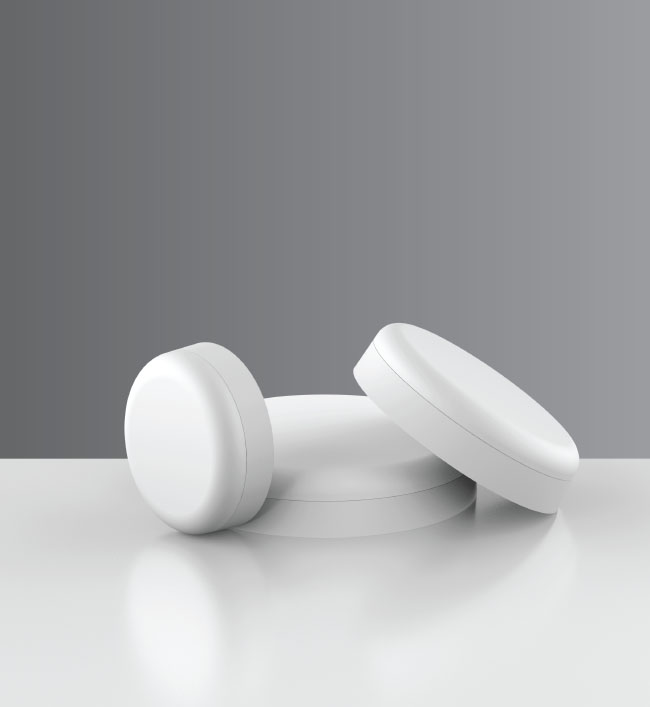

Bema 7 is a compact downlight with textured opal diffuser. It stands out for its natural integration into the ceiling thanks to a perimeter contour of soft lines and slight curvature.
Product Description
• LED ceiling surface mounted - indoor luminaire with soft & uniform light distribution.
• Luminaire made of die-cast aluminium for better thermal management.
• High efficiency diffuser for glare free, uniform light distribution.
• High PF constant current LED driver.
• Cable entries for through-wiring of mains supply cable
• Prewired with LED driver and suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-3612 / 3613 / 3614-CCT ( Colour Temperature )
• Available CCT : 3000K, 4000K, 6000K.
Product Benefits
• Attractive high quality housing and optics.
• Visual comfort with maximum energy saving
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Flexible deployment options with a wide spectrum of applications.
Area of Application
Lobbies & Foyers, Retail Sector, Corridors, Residential, Receptions, Internal passages, Hospitality Industry, Commercial & Business Centers, etc.
Available Finish
White epoxy polyester powder coating.
Product Description
• LED ceiling surface mounted - indoor luminaire with soft & uniform light distribution.
• Luminaire made of die-cast aluminium for better thermal management.
• High efficiency diffuser for glare free, uniform light distribution.
• High PF constant current LED driver.
• Cable entries for through-wiring of mains supply cable
• Prewired with LED driver and suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-3612 / 3613 / 3614-CCT ( Colour Temperature )
• Available CCT : 3000K, 4000K, 6000K.
Product Benefits
• Attractive high quality housing and optics.
• Visual comfort with maximum energy saving
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Flexible deployment options with a wide spectrum of applications.
Area of Application
Lobbies & Foyers, Retail Sector, Corridors, Residential, Receptions, Internal passages, Hospitality Industry, Commercial & Business Centers, etc.
Available Finish
White epoxy polyester powder coating.

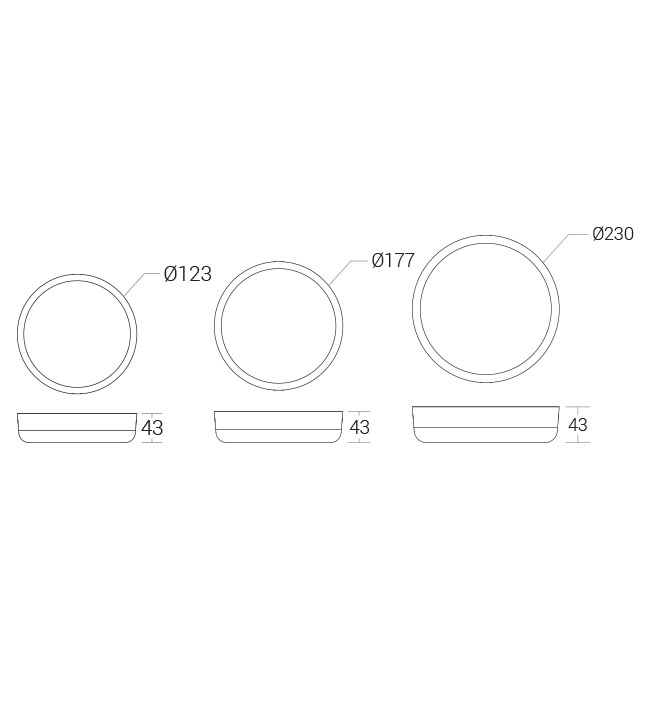

| ID | Wattage | Dimension | Mounting | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|---|---|
| 23612 | 12W LED 3000K,4000K,6500K BA:120°, Translucent Polystyrene | Ø123 x 43mm | 23612-BA120°-WW.IES 23612-BA120°-CW.IES 23612-BA120°-NW.IES |
23612-BA120°-WW.PDF 23612-BA120°-CW.PDF 23612-BA120°-NW.PDF |
23612.pdf | 23612.txt | |
| 23613 | 22W LED 3000K,4000K,6500K BA:120°, Translucent Polystyrene | Ø177 x 43mm | 23613-BA120°-WW.IES 23613-BA120°-CW.IES 23613-BA120°-NW.IES |
23613-BA120°-WW.PDF 23613-BA120°-CW.PDF 23613-BA120°-NW.PDF |
23613.pdf | 23613.txt | |
| 23614 | 32W LED 3000K,4000K,6500K BA:120°, Translucent Polystyrene | Ø230 x 43mm | 23614-BA120°-WW.IES 23614-BA120°-CW.IES 23614-BA120°-NW.IES |
23614-BA120°-WW.PDF 23614-BA120°-CW.PDF 23614-BA120°-NW.PDF |
23614.pdf | 23614.txt |
Configuration Options
