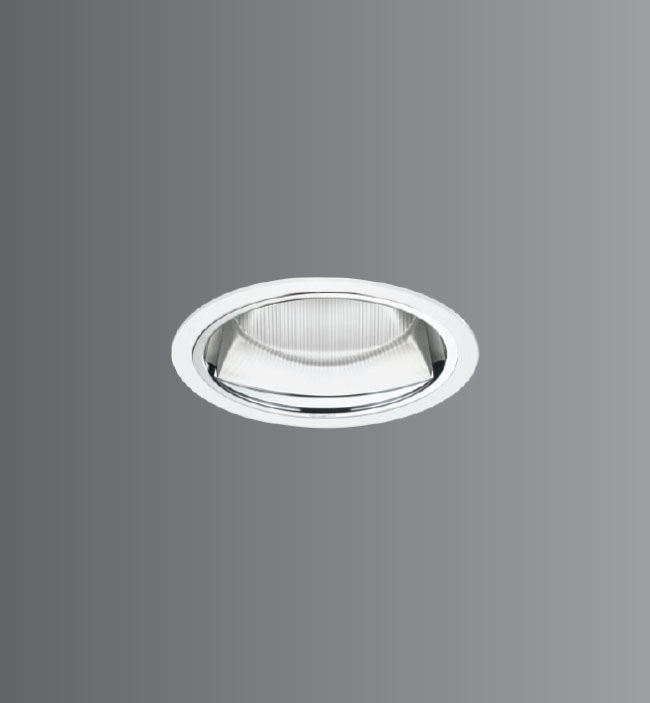

Mila
Mila recess mounted range of LED ceiling lights are a perfect fit for wall washing lighting applications. The die cast aluminium housing is ideal for better thermal management. High lumen output & CCT options make this versatile for indoor lighting solutions. Elegantly designed fixture under the green lighting, energy efficient category.
Product Description
• LED Ceiling recessed mounted tiltable downlight - Indoor luminaire with different light beam angles and wattage for varied applications.
• Luminaire made of die-cast aluminium which has excellent mechanical strength, aluminium heat sink for better thermal management.
• Reflector made of anodized aluminium with diffuser made of polycarbonate
• PMMA optical lens is used to provide soft and excellent energy saving performance.
• Cable entries for through-wiring of mains supply cable.
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-23332 - CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 6500K
Product Benefits
• Quick & simple installation.
• High performance
• Sustainable LED technology
Area of Application

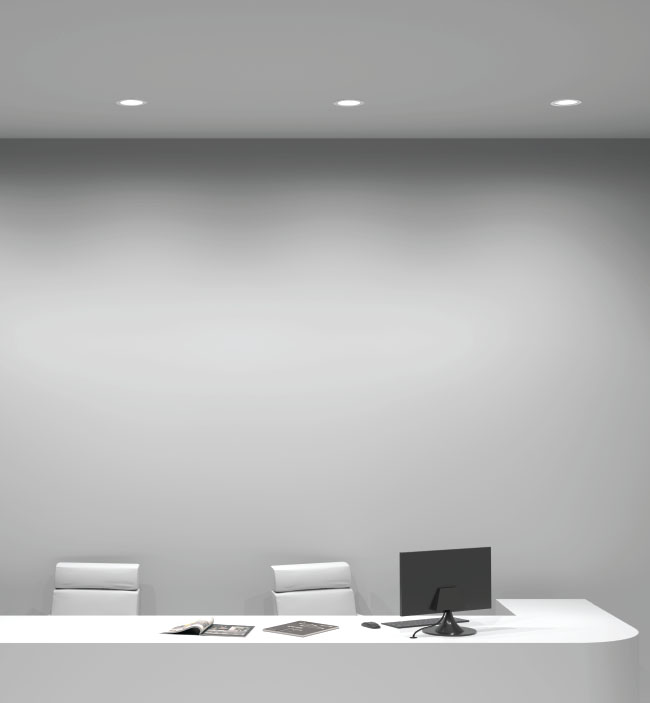

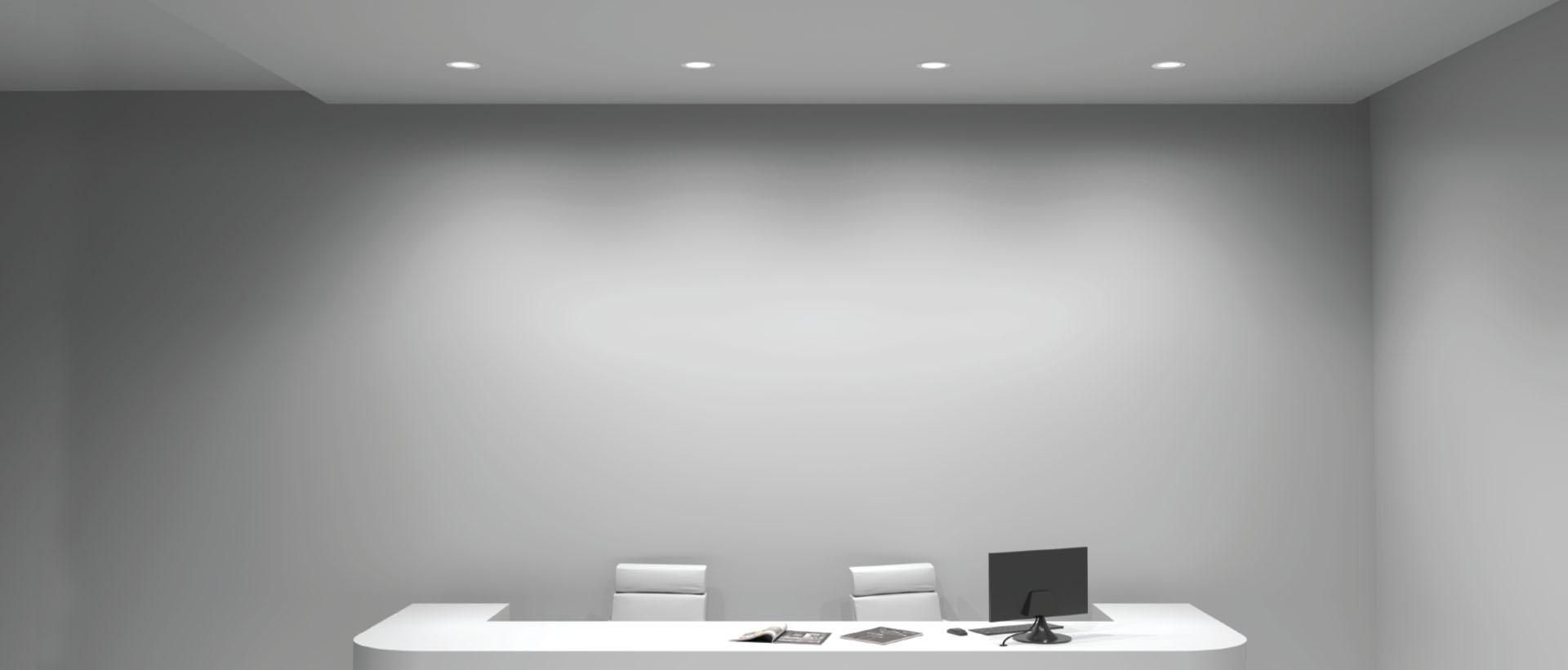

Lobbies & Foyers, Retail Sector, Shopping malls, Corridors, Corporate, Residential & Educational premises, Hospitality Industry, Commercial & Business Centers, Conference Center, Restaurants, etc.
Available Finish
White epoxy polyester powder coating.
Product Description
• LED Ceiling recessed mounted tiltable downlight - Indoor luminaire with different light beam angles and wattage for varied applications.
• Luminaire made of die-cast aluminium which has excellent mechanical strength, aluminium heat sink for better thermal management.
• Reflector made of anodized aluminium with diffuser made of polycarbonate
• PMMA optical lens is used to provide soft and excellent energy saving performance.
• Cable entries for through-wiring of mains supply cable.
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-23332 - CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 6500K
Product Benefits
• Quick & simple installation.
• High performance
• Sustainable LED technology
Area of Application
Lobbies & Foyers, Retail Sector, Shopping malls, Corridors, Corporate, Residential & Educational premises, Hospitality Industry, Commercial & Business Centers, Conference Center, Restaurants, etc.
Available Finish
White epoxy polyester powder coating.
| ID | Wattage | Dimension | Mounting | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|---|---|

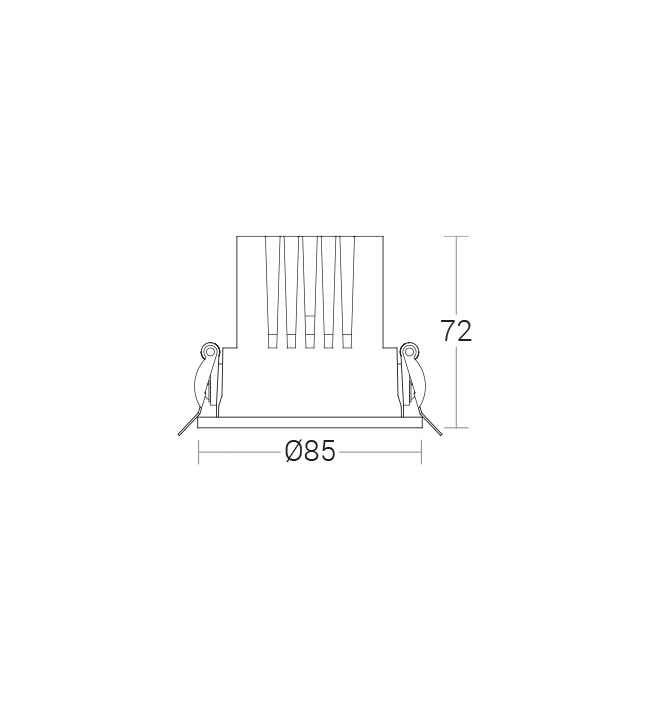

| 23332 | 12W LED 2700K, 3000K, 4000K, 6500K BA:75°, Polycarbonate | C.O.D : Ø78mm | 23332-BA75°-WW.IES 23332-BA75°-CW.IES 23332-BA75°-NW.IES |
23332-BA75°-WW.PDF 23332-BA75°-CW.PDF 23332-BA75°-NW.PDF |
23332.pdf |
Configuration Options
