Diva Deep Round
Diva Deep Round recess mounted range of LED ceiling lights are a perfect fit for varied lighting applications. The die cast aluminium housing is ideal for better thermal management. High lumen output / Different wattage & CCT options make this luminaire versatile for superior glare free indoor lighting solutions.
Product Description
• LED ceiling recessed back-lit panel light - Indoor luminaire with soft uniform Light distribution.
• Luminaire made of die-cast aluminium for better thermal management.
• High efficiency diffuser for glare free, uniform light distribution.
• High lumen output
• High PF constant current LED driver with surge and thermal protection.
• Cable entries for through-wiring of mains supply cable.
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-23321-CCT ( Colour Temperature )
• Available CCT : 3000K, 4000K, 6500K.
Product Benefits
• Flexible deployment options with a wide spectrum of applications.
• Quick & simple installation.
• Diffuser upto 85% transmission level for better efficiency and higher lumens output.
Area of Application
Lobbies & Foyers, Retail Sector, Corporate Office, Airports & Hospitals, Residential & Educational premises, Hospitality Industry, Commercial & Business Centers, Interior Traffic areas.
Available Finish
White epoxy polyester powder coating.
Product Description
• LED ceiling recessed back-lit panel light - Indoor luminaire with soft uniform Light distribution.
• Luminaire made of die-cast aluminium for better thermal management.
• High efficiency diffuser for glare free, uniform light distribution.
• High lumen output
• High PF constant current LED driver with surge and thermal protection.
• Cable entries for through-wiring of mains supply cable.
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-23321-CCT ( Colour Temperature )
• Available CCT : 3000K, 4000K, 6500K.
Product Benefits
• Flexible deployment options with a wide spectrum of applications.
• Quick & simple installation.
• Diffuser upto 85% transmission level for better efficiency and higher lumens output.
Area of Application
Lobbies & Foyers, Retail Sector, Corporate Office, Airports & Hospitals, Residential & Educational premises, Hospitality Industry, Commercial & Business Centers, Interior Traffic areas.
Available Finish
White epoxy polyester powder coating.

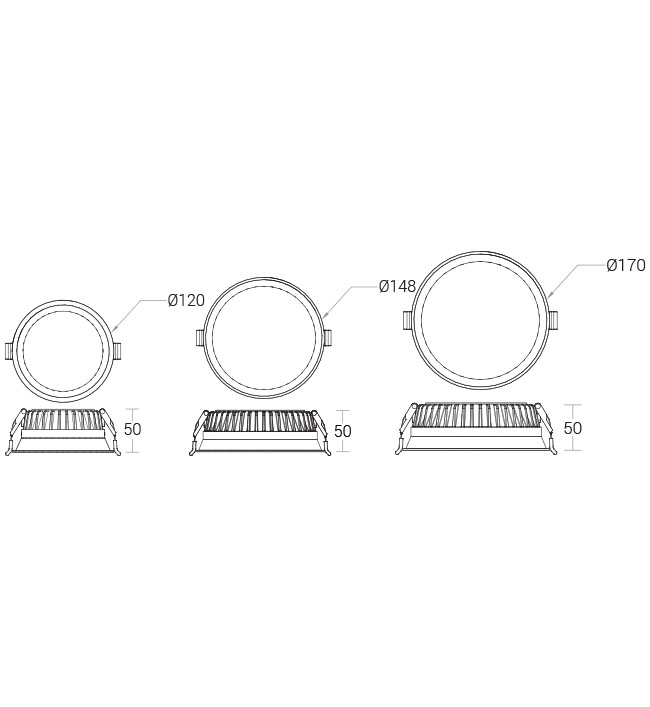

| ID | Wattage | Dimension | Mounting | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|---|---|
| 23321 | 12W LED 3000K,4000K,6500K BA:120°, Opal | C.O.D : Ø110mm | 23321-BA120°-WW.IES 23321-BA120°-CW.IES 23321-BA120°-NW.IES |
23321-BA120°-WW.PDF 23321-BA120°-CW.PDF 23321-BA120°-NW.PDF |
23321.pdf | 23321.txt | |
| 23322 | 18W LED 3000K,4000K,6500K BA:120°, Opal | C.O.D : Ø138mm | 23322-BA120°-WW.IES 23322-BA120°-CW.IES 23322-BA120°-NW.IES |
23322-BA120°-WW.PDF 23322-BA120°-CW.PDF 23322-BA120°-NW.PDF |
23322.pdf | 23322.txt | |
| 23323 | 24W LED 3000K,4000K,6500K BA:120°, Opal | C.O.D : Ø160mm | 23323-BA120°-WW.IES 23323-BA120°-CW.IES 23323-BA120°-NW.IES |
23323-BA120°-WW.PDF 23323-BA120°-CW.PDF 23323-BA120°-NW.PDF |
23323.pdf |
