Stix Light
Product Description
• Luminaire made of extrusion aluminium tube.
• Non yellowing UV stabilized Clear Acrylic Rod.
• Mounting spike / die cast aluminium base arrangement to facilitate easy Installation at any desired location.
• Constant voltage non integral power supply
• Luminaire supplied with one metre cable length and IP67 connector.
• Low Voltage at 24Vdc assures safety.
• Ordering guide : KL-24554-CCT (Colour Temperature)
• Available CCT : 2700K / 3000K / 4000K / 5700K (special CCT on request - Amber / Red / Green / Blue).

Product Benefits
• Timeless modern design, quick & simple installation.
• Soft diffused lighting provides pedestrians glareless and distinctive lighting with exceptional visual comfort.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Suitable for low traffic areas

Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
IDWattageDimensionMountingIESPhotometryTechnical DatasheetTechnical Description
24554 3W LED 2700K,3000K,4000K,5700K, Clear Acrylic Rod Surface : Ø60 x 762,Ø60 x 962,Ø60 x 1162,Spike : 99 x 59 x 1100,99 x 59 x 1300,99 x 59 x 1500mmM54
Detailed Foundation Drawing
24554.pdf 24554.txt
24Vdc product. Order required driver and accessories. Amber,Red,Green,Blue (special CCT on request) at extra
Configuration Options +

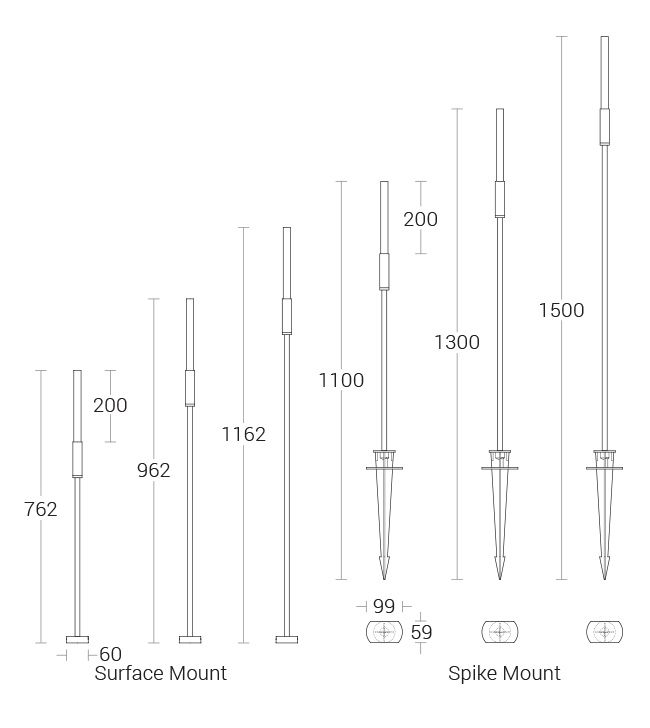

Stix Light - dimensional drawing

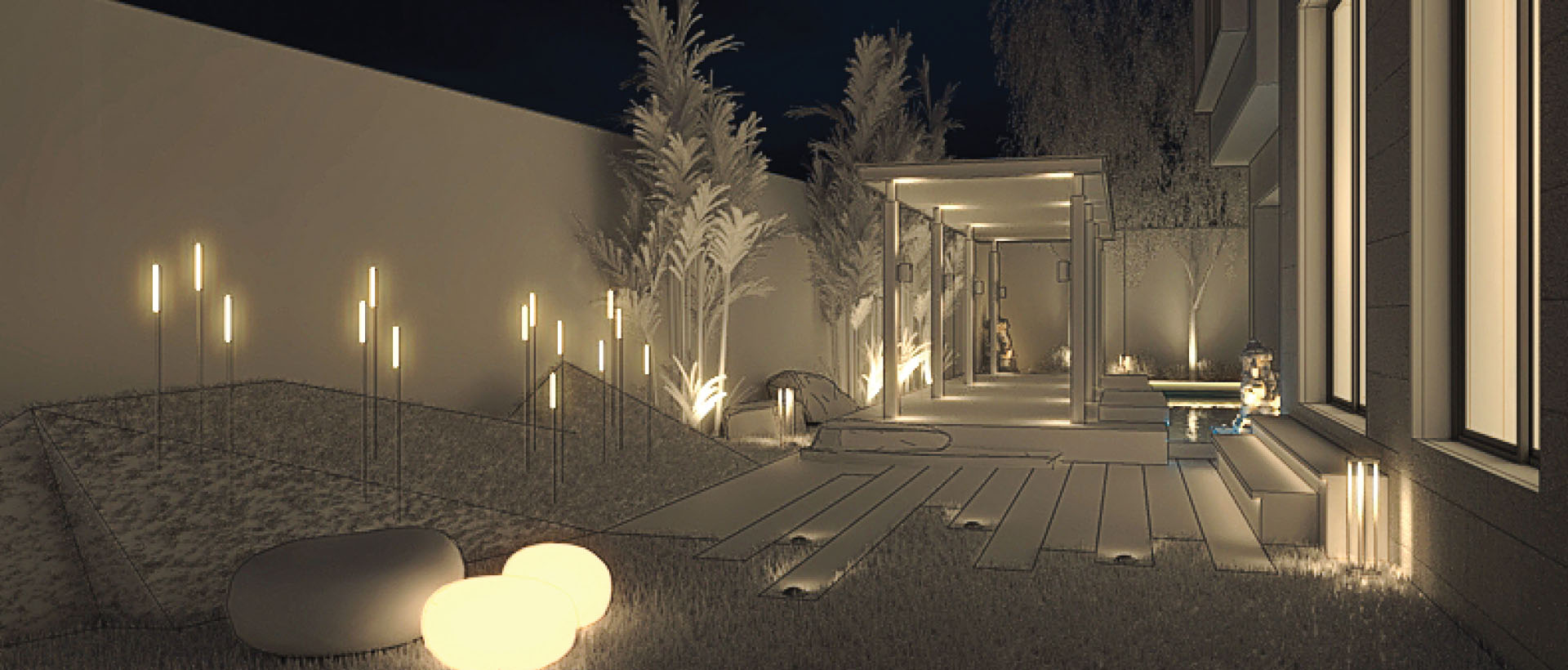

Stix Light
