Avenue
One of the key features of Avenue street lights is their energy efficiency. Equipped with state-of-the-art LED technology, these lights consume significantly less energy than traditional street lights, which means lower electricity bills and a reduced environmental footprint. Plus, with a long lifespan of at least 60,000 hours, you won't need to worry about frequent replacements or maintenance.

Product Description
• Luminaire made of pressure die cast aluminium alloy of high corrosion resistance and non corrosive stainless steel fasteners.
• Clear toughened glass.
• Silicone gasket.
• Suitable for Mounting on 38mm / 60mm OD pipe
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >70 (>80 On Request)
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-24391-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K

Product Benefits
• Functionally versatile, strong and stable.
• Corrosion resistant and maintenance free.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

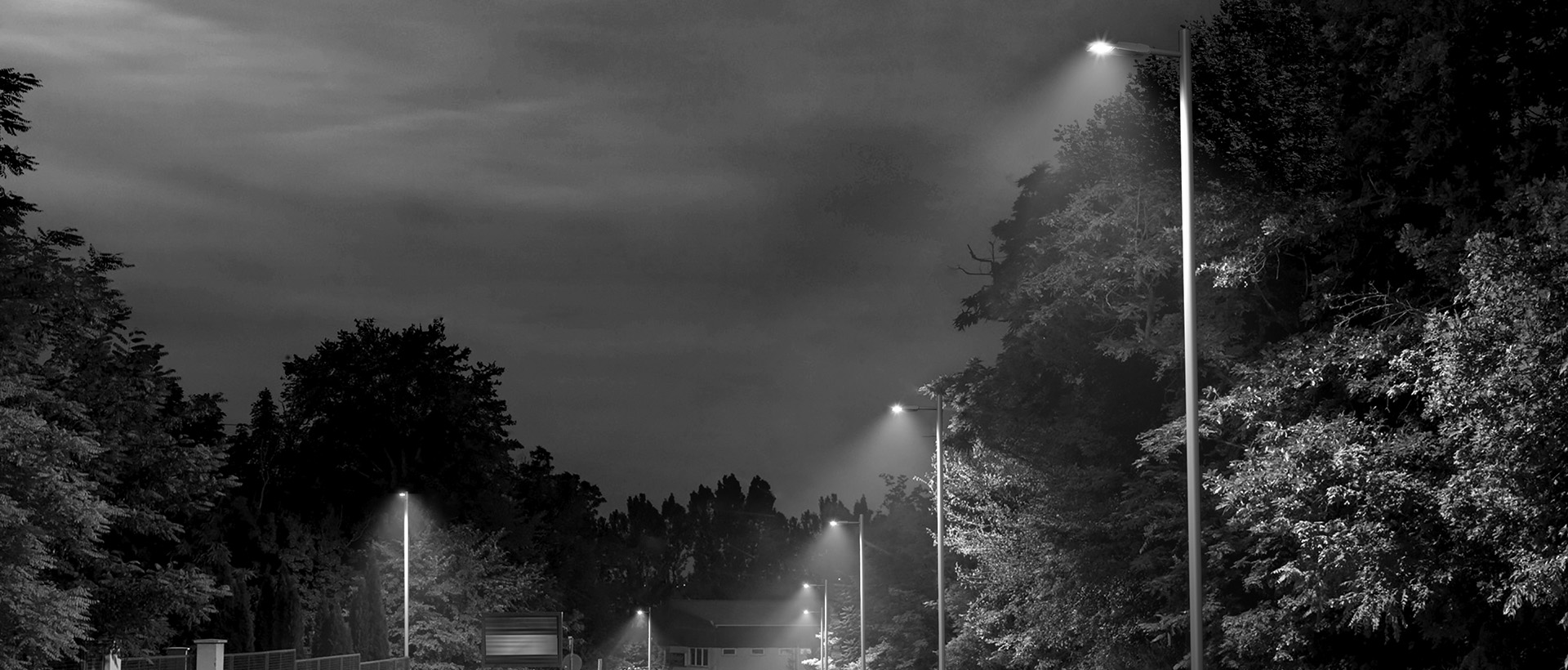

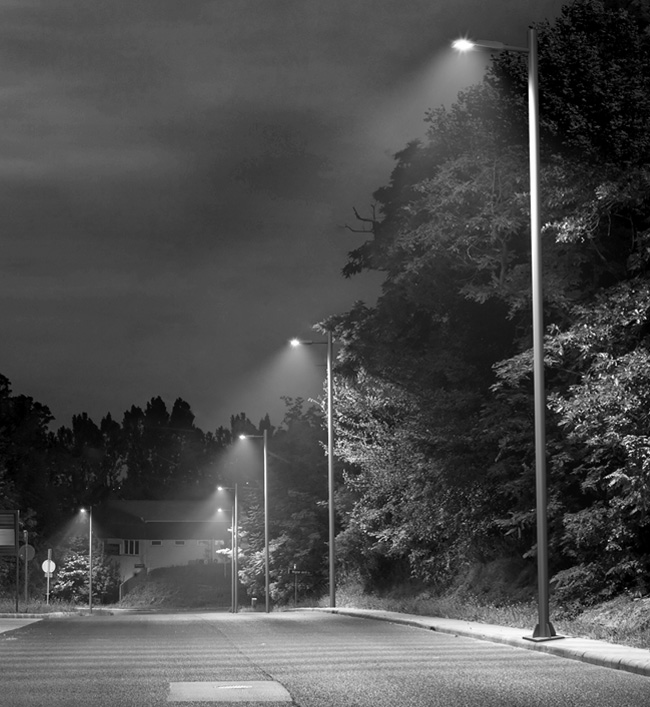

Area of Application
Illuminating parks, Gardens, Commercial complex, Private driveways, Street lighting, Smaller roadways, Residential area lighting

Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
IDWattageDimensionMountingIESPhotometryTechnical DatasheetTechnical Description
24392 100W LED 2700K,3000K,4000K,5700K BA:Type II, Clear Toughened Glass 526 x 174 x 90mmD2
24392-BATYPEII-3000K.IES
24392-BATYPEIII-3000K.IES
24392-BATYPEIV-3000K.IES
24392-BATYPEII-4000K.IES
24392-BATYPEIII-4000K.IES
24392-BATYPEIV-4000K.IES
24392-BATYPEII-5700K.IES
24392-BATYPEIII-5700K.IES
24392-BATYPEIV-5700K.IES
24392-BATYPEII-3000K.PDF
24392-BATYPEIII-3000K.PDF
24392-BATYPEIV-3000K.PDF
24392-BATYPEII-4000K.PDF
24392-BATYPEIII-4000K.PDF
24392-BATYPEIV-4000K.PDF
24392-BATYPEII-5700K.PDF
24392-BATYPEIII-5700K.PDF
24392-BATYPEIV-5700K.PDF
24392.pdf 24392.txt
24391 40W LED 2700K,3000K,4000K,5700K BA:Type II, Clear Toughened Glass 378 x 120 x 72mmD6
24391-BATYPEII-3000K.IES
24391-BATYPEIII-3000K.IES
24391-BATYPEIV-3000K.IES
24391-BATYPEII-4000K.IES
24391-BATYPEIII-4000K.IES
24391-BATYPEIV-4000K.IES
24391-BATYPEII-5700K.IES
24391-BATYPEIII-5700K.IES
24391-BATYPEIV-5700K.IES
24391-BATYPEII-3000K.PDF
24391-BATYPEIII-3000K.PDF
24391-BATYPEIV-3000K.PDF
24391-BATYPEII-4000K.PDF
24391-BATYPEIII-4000K.PDF
24391-BATYPEIV-4000K.PDF
24391-BATYPEII-5700K.PDF
24391-BATYPEIII-5700K.PDF
24391-BATYPEIV-5700K.PDF
24391.pdf 24391.txt
Configuration Options +

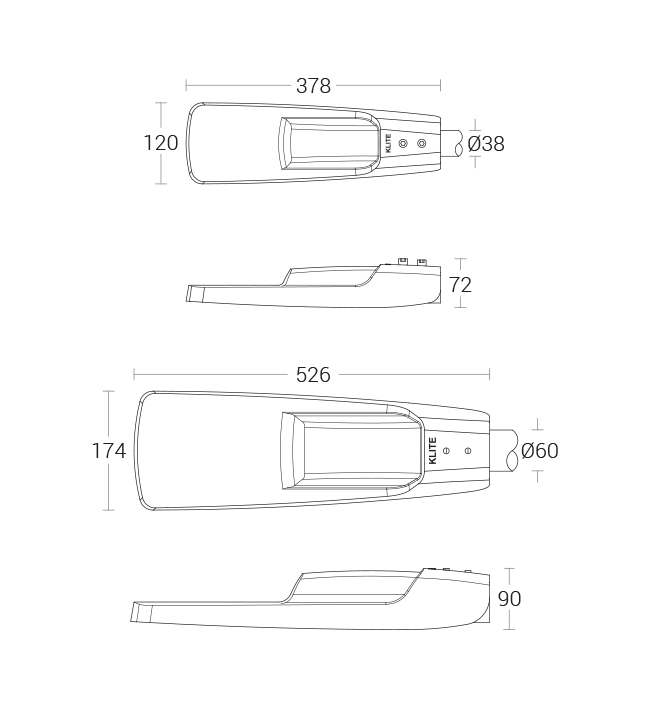

Avenue - dimensional drawing
Avenue
