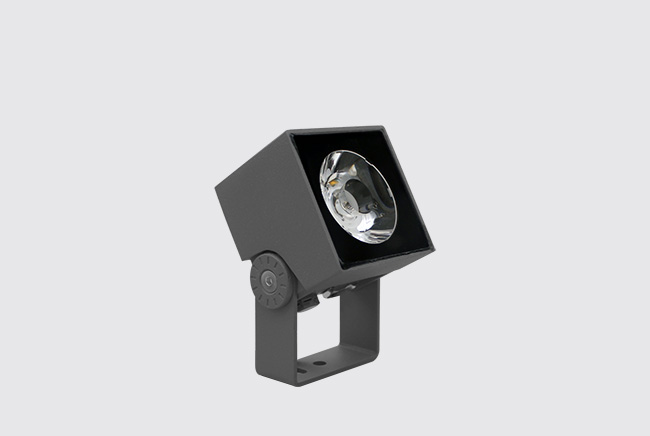

Leva-1
The surface-mounted LED luminaries are ideal for wall, ceiling, and floor applications. They seamlessly integrate with commercial, historical, and modern architectural styles, enhancing the aesthetic appeal of any space.
Material
Body : Die cast aluminium alloy
Impact Protection : IK05
Ingress Protection : IP66
Diffuser : Clear Toughened Glass
Mounting : Surface - Bracket
Electrical
Driver : Constant Voltage
Power Supply : Non-Integral
Operating Voltage : 24Vdc
Product Configurations
Wattage : 6W / 8W LED
CCT : 3000K
LED Life Time : L70 B10 50,000 H
Area of Application

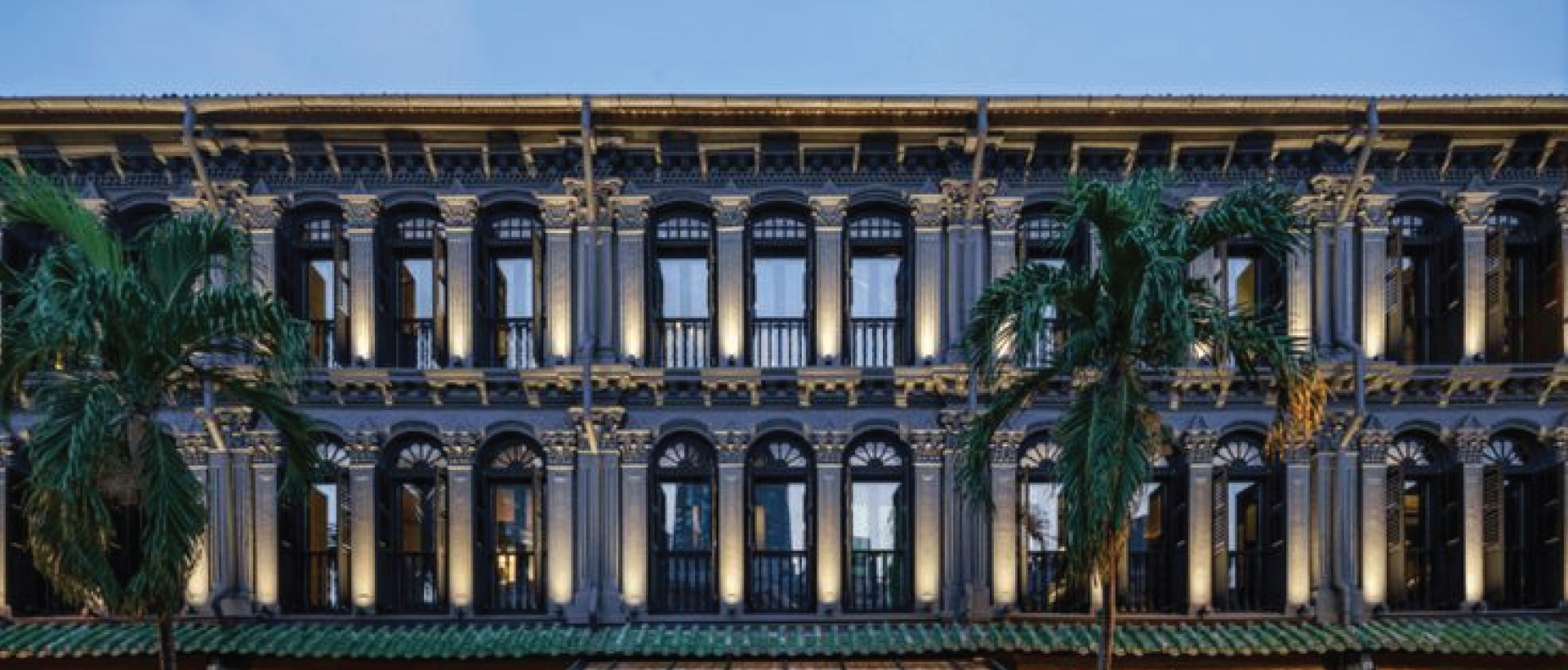

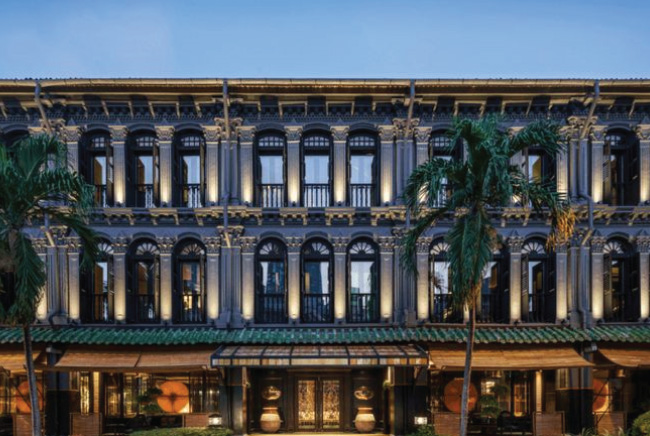

Building Facade, Architectural focal points, Architectural elements.
Available Finish
Pure polyester powder coated
• RAL 7024 Graphite Grey
Material
Body : Die cast aluminium alloy
Impact Protection : IK05
Ingress Protection : IP66
Diffuser : Clear Toughened Glass
Mounting : Surface - Bracket
Electrical
Driver : Constant Voltage
Power Supply : Non-Integral
Operating Voltage : 24Vdc
Product Configurations
Wattage : 6W / 8W LED
CCT : 3000K
LED Life Time : L70 B10 50,000 H
Area of Application
Building Facade, Architectural focal points, Architectural elements.
Available Finish
Pure polyester powder coated
• RAL 7024 Graphite Grey
| ID | Wattage | Dimension | Mounting | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|---|---|

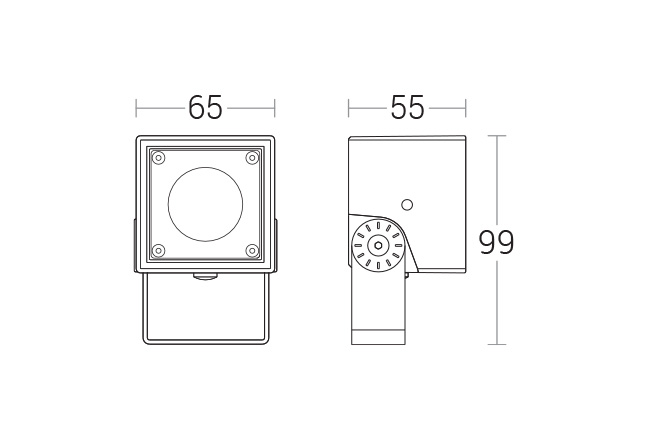

| 24466 | 6W / 8W 3000K BA:3°, Clear Toughened Glass | 65 x 55 x 99mm | 24466.pdf |
Configuration Options
