Liya
Our recess-mounted range of LED ceiling lights offers exceptional versatility for diverse lighting applications. Featuring high-quality LED sources, these luminaires ensure minimal energy consumption and an extended service life. Designed to accommodate both low and high mounting heights, they are ideal for installation in ceilings, catering to interior and exterior settings alike. With an elegant design that adheres to green lighting standards, these fixtures exemplify energy efficiency and aesthetic appeal.

Material
Body : Die-cast aluminium alloy
Ingress Protection : IP65
Lens : Polycarbonate optical lens
Mounting : Recessed

Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz

Product Configurations
Wattage : 12W LED
Beam Angle : 60° (15° / 24° / 36° on request)
CCT : 2700K / 3000K / 4000K / 6000K
LED Life Time : L70 B10 60,000 H

Area Of Application

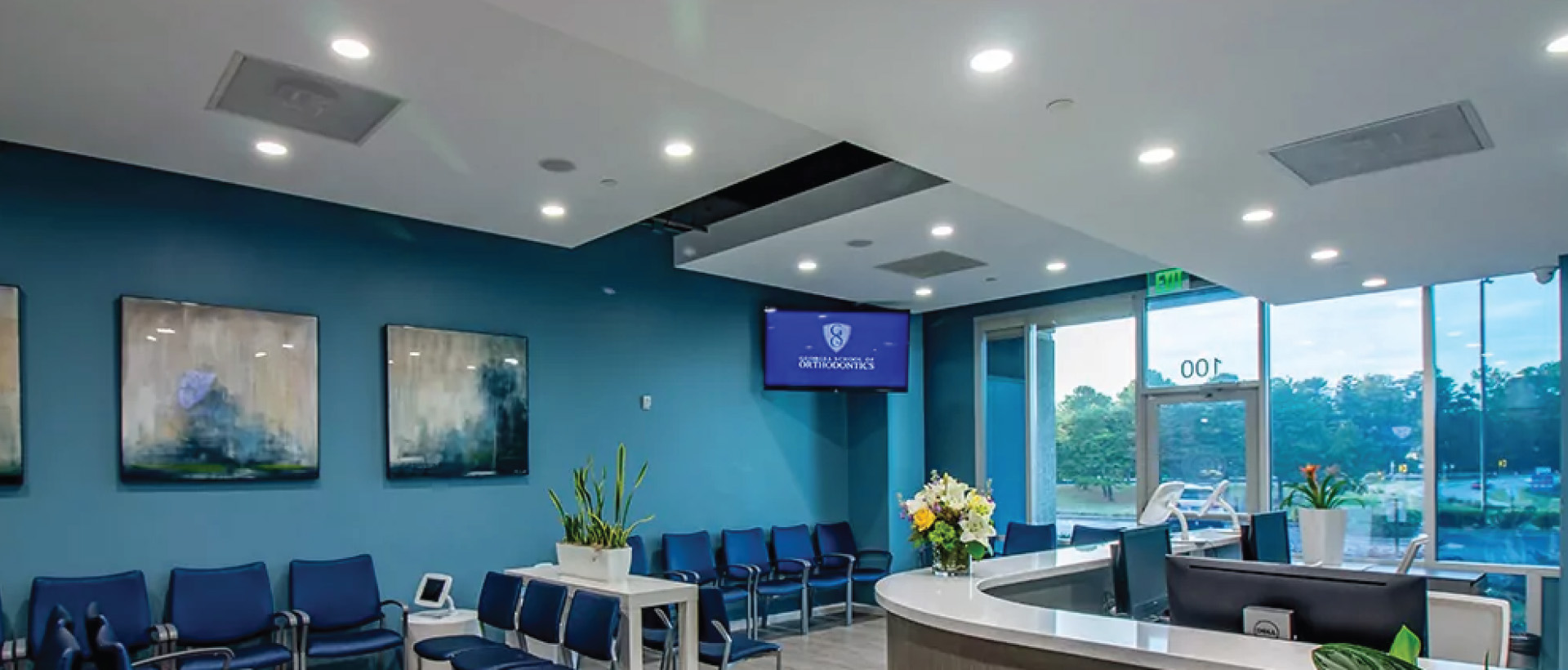

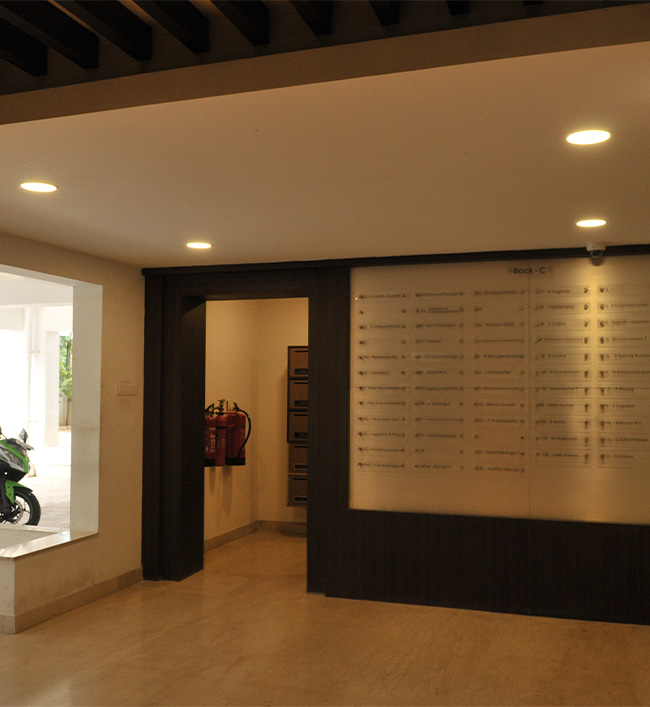

Retail Sector, Commercial & Business Centers, Residential town ships, Educational Institutes, Hospitality & Industrial sector, Entrance foyer.

Available Finish
Pure polyester powder coated RAL 9016 Traffic white.
IDWattageDimensionMountingIESPhotometryTechnical DatasheetTechnical Description
22816 18W LED 2700K,3000K,4000K,6000K BA:60°, Polycarbonate Optical Lens C.O.D : Ø95mm 22816.pdf 22816.txt
22817 30W LED 2700K,3000K,4000K,6000K BA:60°, Polycarbonate Optical Lens C.O.D : Ø115mm 22817.pdf 22817.txt
22818 40W LED 2700K,3000K,4000K,6000K BA:60°, Polycarbonate Optical Lens C.O.D : Ø135mm 22818.pdf 22818.txt
22815 12W LED 2700K,3000K,4000K,6000K BA:60°, Polycarbonate Optical Lens C.O.D : Ø75mm 22815.pdf 22815.txt
Configuration Options +

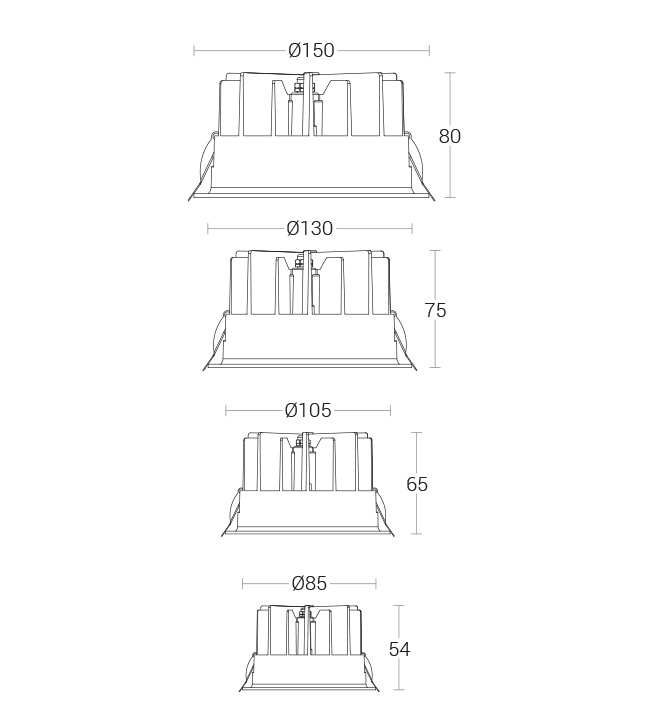

Liya - dimensional drawing
