Stellar 10 - SV
The Stellar silicone co-extrusion flex is an advanced lighting solution designed for durability and performance. Offering exceptional UV resistance, chemical stability and abrasion resistance, this flexible luminaire is ideal for both indoor and outdoor applications. With an IP67 rating, it is fully protected against dust and water ingress, ensuring reliable use in demanding environments. The flexible design allows for easy horizontal bending, delivering a uniform light output along its entire length. Additionally the Stellar flex can be configured to the precise length needed with small cutting increments, allowing for seamless and flexible installation in various settings.

Product Description
• Ultra bright LED Silicone - Side View
• Anti-UV for outdoor use.
• Flexible horizontal bending diameter of >100mm for easy of installation.
• Available in 120° beam angle.
• Even light distribution & no dot spots.
• CRI ( Ra) : >90
• Constant voltage non integral power supply
• Low Voltage at 24Vdc assures safety.

Product Benefits
• Dot free and absolutely homogeneous light emission surface.
• Flexibility combined with high durability.
• High luminous flux
• High colour consistency

Areas of Application
• Signboard
• Logo
• Accent Lighting
• Hospitality Industry
• Commercial & Business Centers
IDWattageDimensionIESPhotometryTechnical DatasheetTechnical Description
23366 10W/m 3000K BA:120° 1000 x 10 x 10mm 23366.pdf
24Vdc product. Order required driver and accessories
Configuration Options +

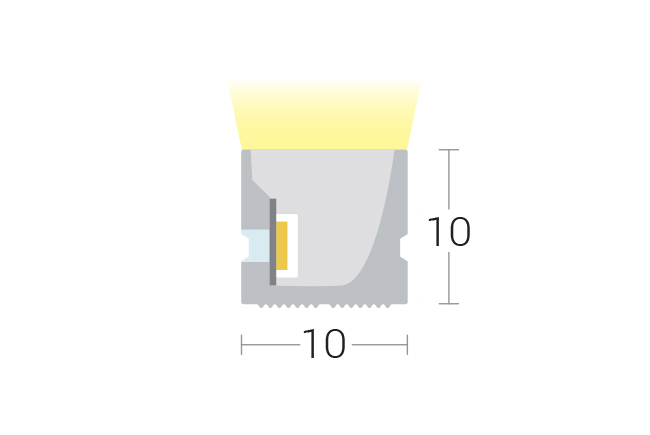

Stellar 10 - SV - dimensional drawing
