Torch

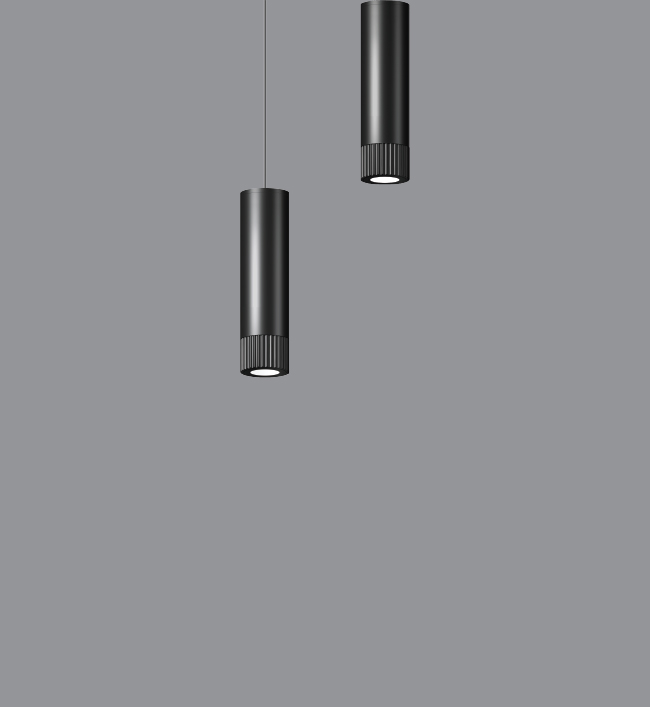

Compact and efficient decorative pendant / ceiling mounted down lighters. High protection class & lumen output makes it versatile solution for both indoor & outdoor applications.
MATERIAL
Body : Extruded aluminium tube (grade 6063)
Diffuser : Clear toughened glass
Impact Protection : IK06
Ingress Protection : IP65
Gasket : Silicone
Mounting : Surface / Pendant
ELECTRICAL
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
PRODUCT CONFIGURATIONS
Wattage : 6W LED
Optical Beam Angle : 12° / 24° / 40°
CCT : 2700K / 3000K / 4000K / 6500K
LED Life Time : L70 B10 60,000 H
AREA OF APPLICATION
Corporate Offices, Malls, Restaurants, Receptions, Corridors, Commercial & Business Centers, etc.
AVAILABLE FINISH
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
MATERIAL
Body : Extruded aluminium tube (grade 6063)
Diffuser : Clear toughened glass
Impact Protection : IK06
Ingress Protection : IP65
Gasket : Silicone
Mounting : Surface / Pendant
ELECTRICAL
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
PRODUCT CONFIGURATIONS
Wattage : 6W LED
Optical Beam Angle : 12° / 24° / 40°
CCT : 2700K / 3000K / 4000K / 6500K
LED Life Time : L70 B10 60,000 H
AREA OF APPLICATION
Corporate Offices, Malls, Restaurants, Receptions, Corridors, Commercial & Business Centers, etc.
AVAILABLE FINISH
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
| ID | Wattage | Dimension | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|---|

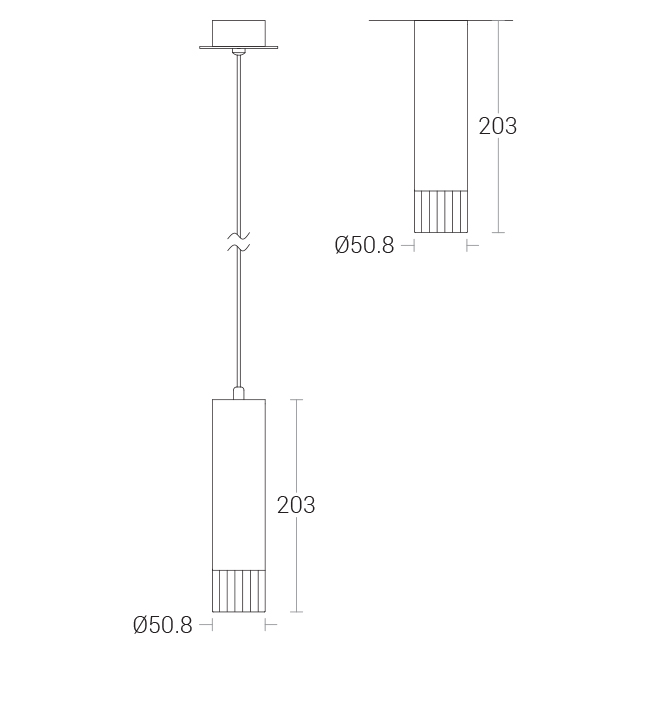

| 24035 | 6W LED 2700K,3000K,4000K,6500K BA:25°,40°,15°, Clear Toughened Glass | Ø50.8 x 203mm | 24035.pdf | 24035.txt |
Configuration Options
