Torch Stix
The environmentally friendly LED garden and pathway luminaires is both sustainability and user comfort. Its emphasis on creating a pleasant light distribution and high visual comfort, they cater to the needs of outdoor spaces while minimizing glare and discomfort for those in the vicinity.
MATERIAL
Body : Extruded aluminium tube (grade 6063)
Diffuser : Clear toughened glass
Impact Protection : IK06
Ingress Protection : IP65
Gasket : Silicone
Mounting : Pressure die cast aluminium mounting base
ELECTRICAL
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
PRODUCT CONFIGURATIONS
Wattage : 1 x 6W / 2 x 6W LED
Optical Beam Angle : 12° / 24° / 40°
CCT : 2700K / 3000K / 4000K / 6500K
LED Life Time : L70 B10 60,000 H
AREA OF APPLICATION
Suitable for low traffic areas.
AVAILABLE FINISH
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
MATERIAL
Body : Extruded aluminium tube (grade 6063)
Diffuser : Clear toughened glass
Impact Protection : IK06
Ingress Protection : IP65
Gasket : Silicone
Mounting : Pressure die cast aluminium mounting base
ELECTRICAL
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
PRODUCT CONFIGURATIONS
Wattage : 1 x 6W / 2 x 6W LED
Optical Beam Angle : 12° / 24° / 40°
CCT : 2700K / 3000K / 4000K / 6500K
LED Life Time : L70 B10 60,000 H
AREA OF APPLICATION
Suitable for low traffic areas.
AVAILABLE FINISH
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
| ID | Wattage | Dimension | Mounting | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|---|---|

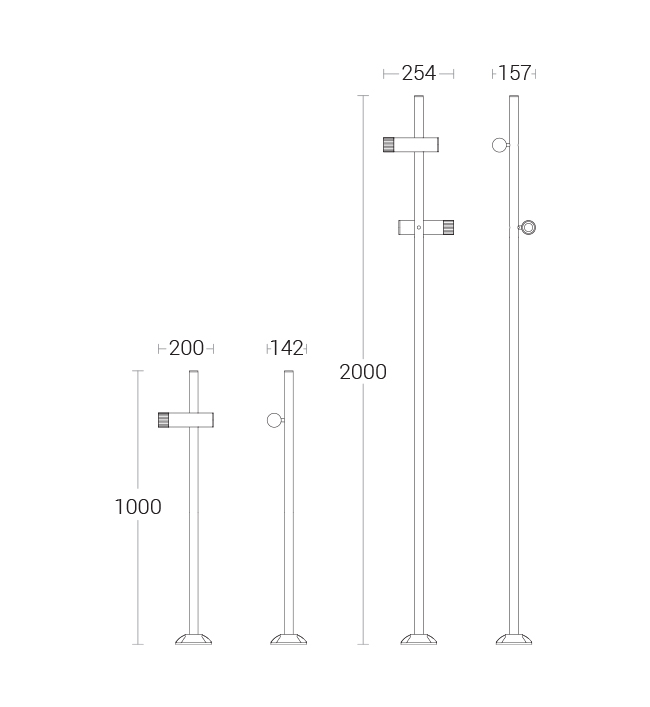

| 22797 | 1 x 6W / 2 x 6W 2700K,3000K,4000K,6500K BA:12°,24°,40°, Clear Toughened Glass | 200 x 142 x 1000 / 254 x 157 x 2000mm | M57 Detailed Foundation Drawing | 22797.pdf | 22797.txt |
Configuration Options
