Elina
An eco-friendly LED garden and pathway luminaire designed for sustainability and superior visual comfort. With smooth light distribution and glare control, it creates a pleasant and safe lighting environment for outdoor pathways and landscaped areas.
Material
Body : Extruded aluminium tube (grade 6063)
Diffuser : PMMA
Ingress Protection : IP65
Mounting : Pressure die cast aluminium mounting base
Electrical
Driver : Constant Voltage
Power Supply : Non-Integral
Operating Voltage : 24Vdc
Product Configurations
Wattage : 1 x 6W / 2 x 6W LED
Optical Beam Angle : 120°
CCT : 2700K / 3000K / 4000K / 5700K
LED Life Time : L70 B10 60,000 H
Area Of Application
Suitable for low traffic areas
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
Material
Body : Extruded aluminium tube (grade 6063)
Diffuser : PMMA
Ingress Protection : IP65
Mounting : Pressure die cast aluminium mounting base
Electrical
Driver : Constant Voltage
Power Supply : Non-Integral
Operating Voltage : 24Vdc
Product Configurations
Wattage : 1 x 6W / 2 x 6W LED
Optical Beam Angle : 120°
CCT : 2700K / 3000K / 4000K / 5700K
LED Life Time : L70 B10 60,000 H
Area Of Application
Suitable for low traffic areas
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
| ID | Wattage | Dimension | Mounting | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|---|---|

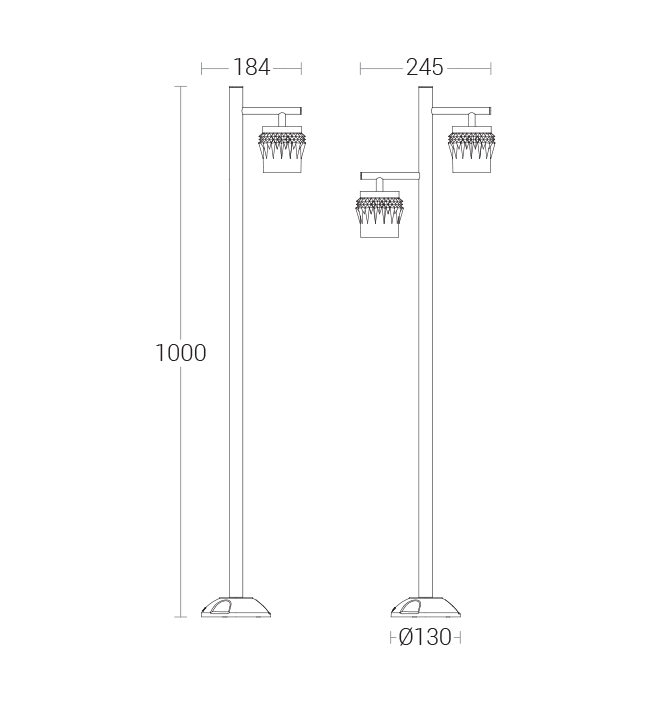

| 22569 | 1x6W / 2x6W 2700K,3000K,4000K,5700K BA:120°, PMMA | 184 x Ø130 x 1000 / 245 x Ø130 x 1000mm | M57 Detailed Foundation Drawing | 22569.pdf | 22569.txt |
Configuration Options
