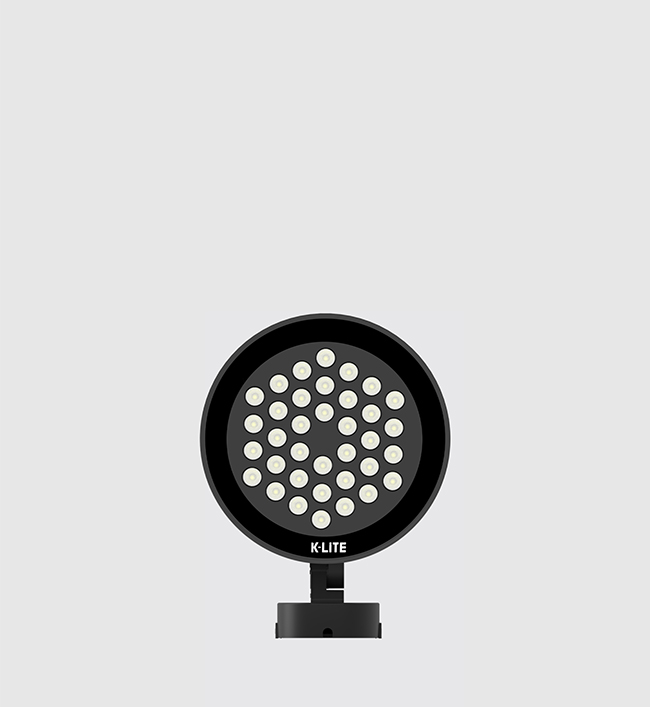

Iyra Mega
High-efficiency LED floodlights designed to deliver precise, directional spotlighting. The luminaires feature high luminous efficacy, exceptionally long service life, and uniform illuminance. Their robust, durable construction makes them ideal for applications requiring high mechanical strength and reliability.
Material
Body : Aluminium
Impact Protection : IK08
Ingress Protection : IP65
Diffuser : Clear Toughened glass
Mounting : Surface
Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
Surge : 4KV
Product Configurations
Wattage : 90W
Optical Beam Angle : 12° / 24° / 40°
CCT : 2700K / 3000K / 4000K / 5700K (RGBW - On Request)
LED Life Time : L70 B10 60,000 H
Area Of Application

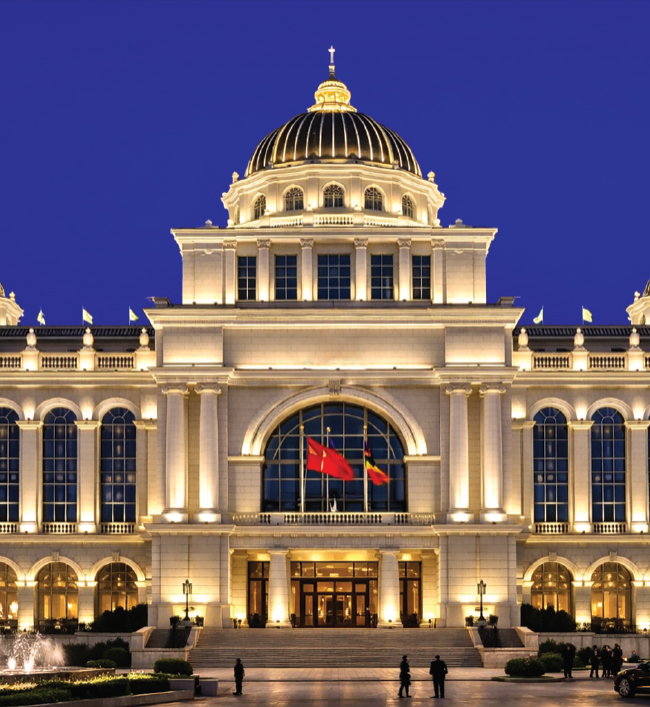

Architectural and building facade lighting, Pathways, Parks, Sculptures, Structures and Security lighting.
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
Material
Body : Aluminium
Impact Protection : IK08
Ingress Protection : IP65
Diffuser : Clear Toughened glass
Mounting : Surface
Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
Surge : 4KV
Product Configurations
Wattage : 90W
Optical Beam Angle : 12° / 24° / 40°
CCT : 2700K / 3000K / 4000K / 5700K (RGBW - On Request)
LED Life Time : L70 B10 60,000 H
Area Of Application
Architectural and building facade lighting, Pathways, Parks, Sculptures, Structures and Security lighting.
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
| ID | Wattage | Dimension | Mounting | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|---|---|

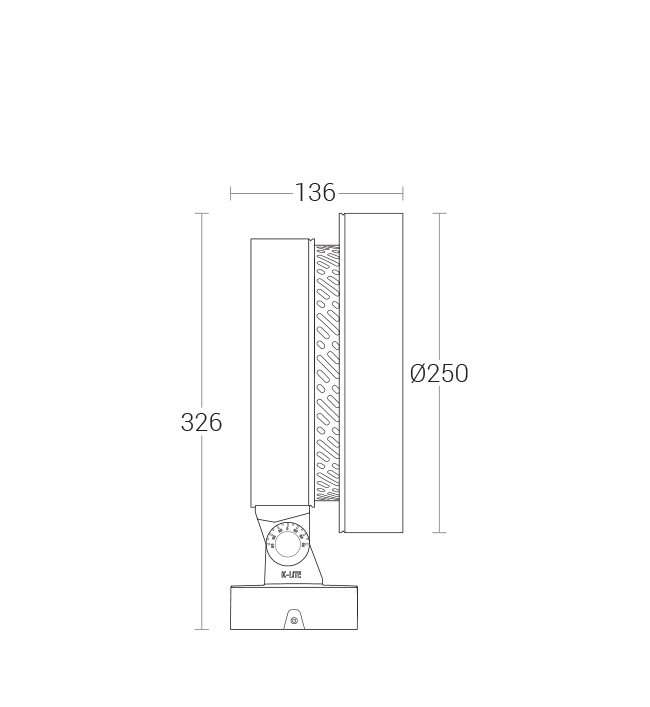

| 22554 | 90W LED 2700K,3000K,4000K,5700K BA:12°,24°,40°, Clear Toughened Glass | 136 x Ø250 x 326mm | M56 Detailed Foundation Drawing | 22554.pdf | 22554.txt |
Configuration Options
