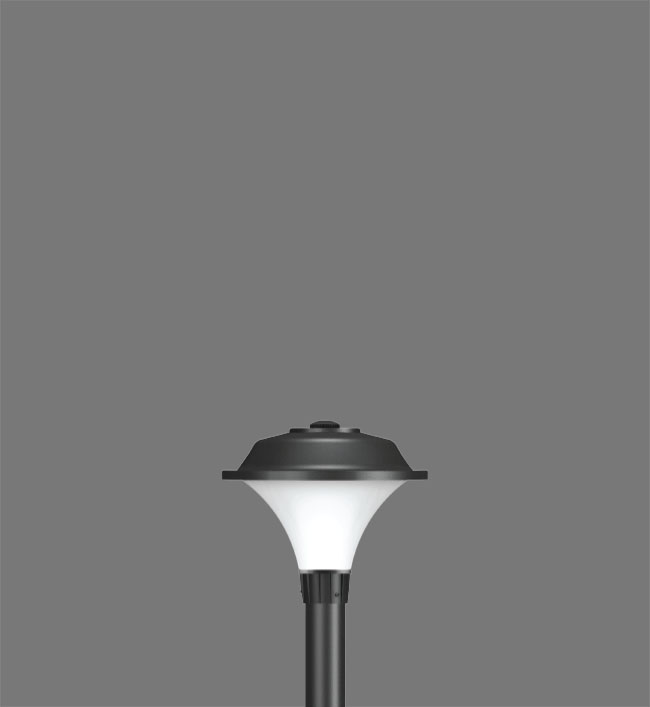

Conic
An elegant and efficient lantern featuring a translucent diffuser that delivers soft, comfortable illumination with symmetrical light distribution. Engineered with a robust, aesthetically refined construction, it is built to withstand harsh weather conditions while ensuring long-lasting durability.

Product Description
• The luminaire made of spun aluminium top cover.
• Lamp compartment encased in non-yellowing translucent UV stabilised acrylic diffuser.
• Luminaire integrated with 12W LED.
• Silicone gasket.
• Die cast aluminium base of low copper content for effective corrosion resistance.
• Suitable for mounting on 50mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-21796-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K

Product Benefits
• Elegant, Robust design
• The diffuser contributes to the creation of ambiance and to visual comfort by reducing glare.
• Low maintenance cost.

Area of Application

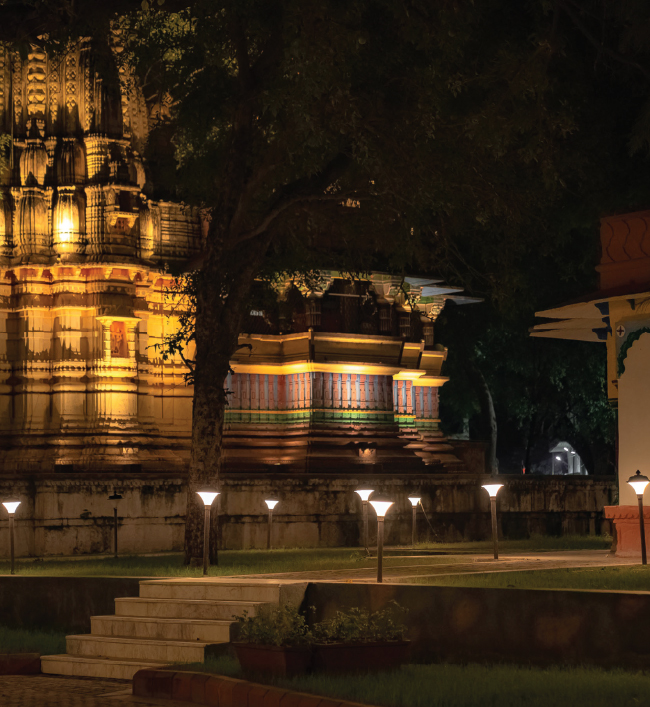

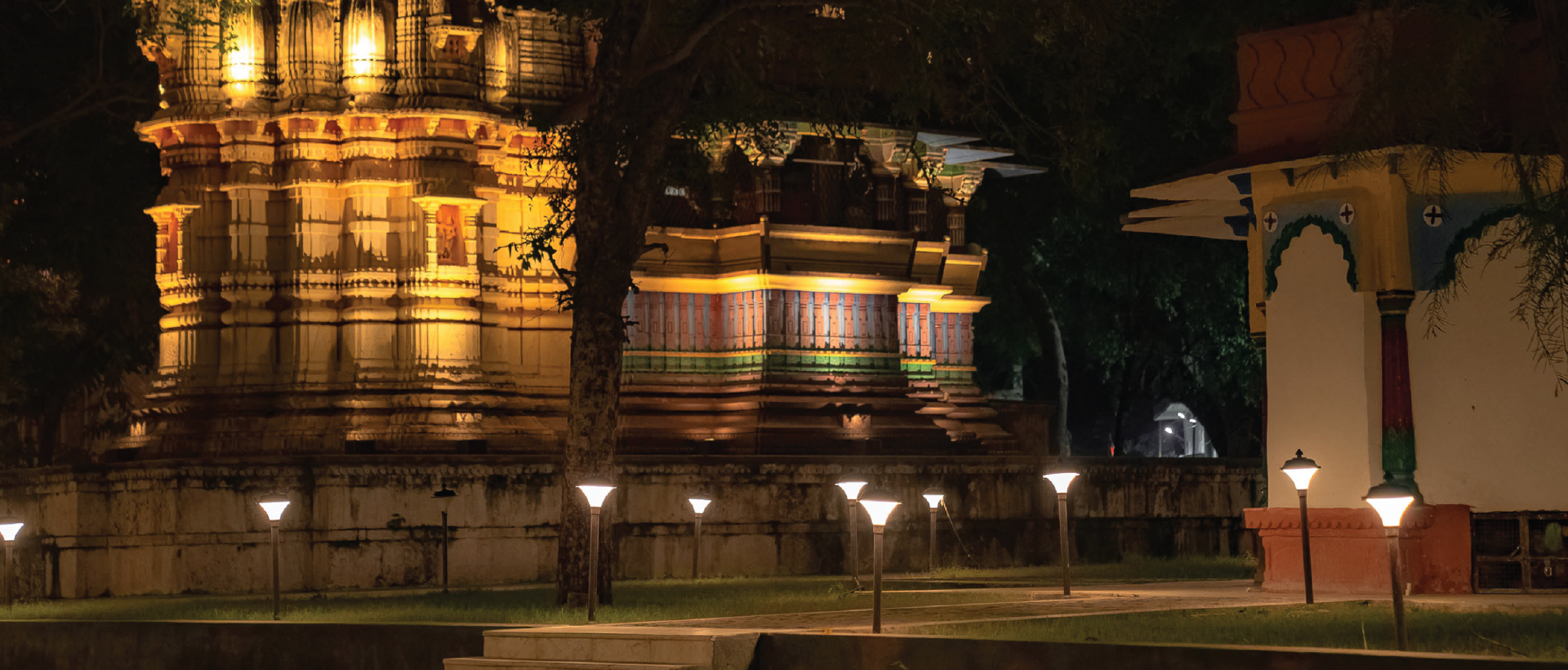

Illuminating parks, Gardens, commercial complex, Residential, Streetscapes & office complex.

Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
IDWattageDimensionMountingIESPhotometryTechnical DatasheetTechnical Description
21796 12W LED, Translucent Acrylic Ø276 x 244mmD1
21796.pdf
Configuration Options +

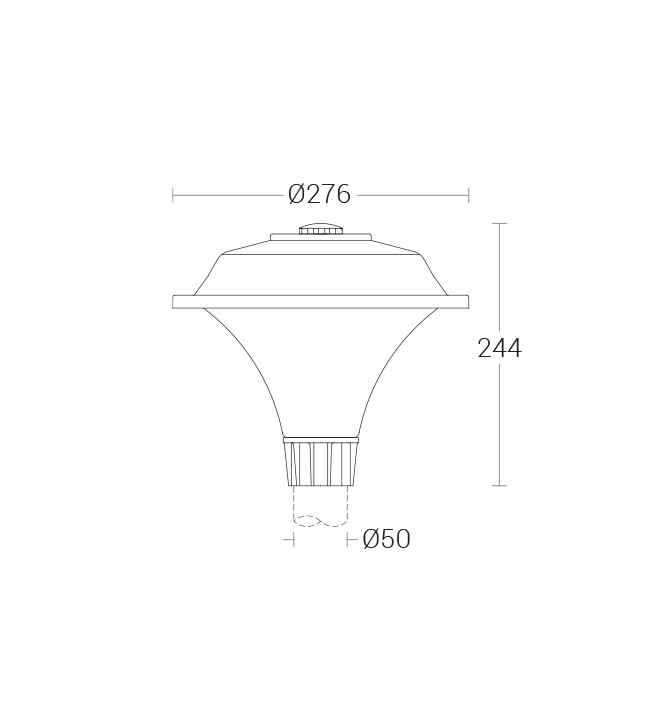

Conic - dimensional drawing
