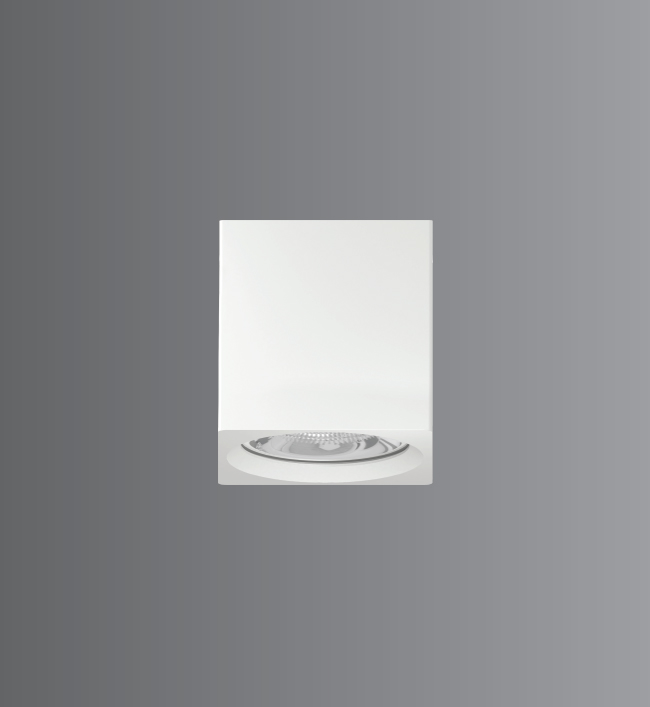

Cubus
Cubus surfaced mounted range of LED ceiling lights are a perfect fit for varied lighting applications. The die cast aluminium housing is ideal for better thermal management. Different wattage options make this luminaire versatile for indoor lighting solutions.
Product Description
• LED ceiling surface mounted - Indoor luminaire with wide beam light distribution.
• Luminaire made of die-cast aluminium for better thermal management.
• Pressure die-cast aluminium inner ring with high purity aluminium reflector for uniform light distribution.
• Clear polycarbonate diffuser.
• High PF constant current LED driver.
• Cable entries for through-wiring of mains supply cable.
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-27349 - CCT ( Colour Temperature )
• Available CCT : 3000K, 4000K, 6500K.
Product Benefits
• Attractive high quality housing and optics.
• Visual comfort with maximum energy saving
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Flexible deployment options with a wide spectrum of applications.
Area of Application
Lobbies & Foyers, Retail Sector, Residential, Receptions, Internal passages, Commercial & Business Centers, etc.
Available Finish
White epoxy polyester powder coating.
Product Description
• LED ceiling surface mounted - Indoor luminaire with wide beam light distribution.
• Luminaire made of die-cast aluminium for better thermal management.
• Pressure die-cast aluminium inner ring with high purity aluminium reflector for uniform light distribution.
• Clear polycarbonate diffuser.
• High PF constant current LED driver.
• Cable entries for through-wiring of mains supply cable.
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-27349 - CCT ( Colour Temperature )
• Available CCT : 3000K, 4000K, 6500K.
Product Benefits
• Attractive high quality housing and optics.
• Visual comfort with maximum energy saving
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Flexible deployment options with a wide spectrum of applications.
Area of Application
Lobbies & Foyers, Retail Sector, Residential, Receptions, Internal passages, Commercial & Business Centers, etc.
Available Finish
White epoxy polyester powder coating.

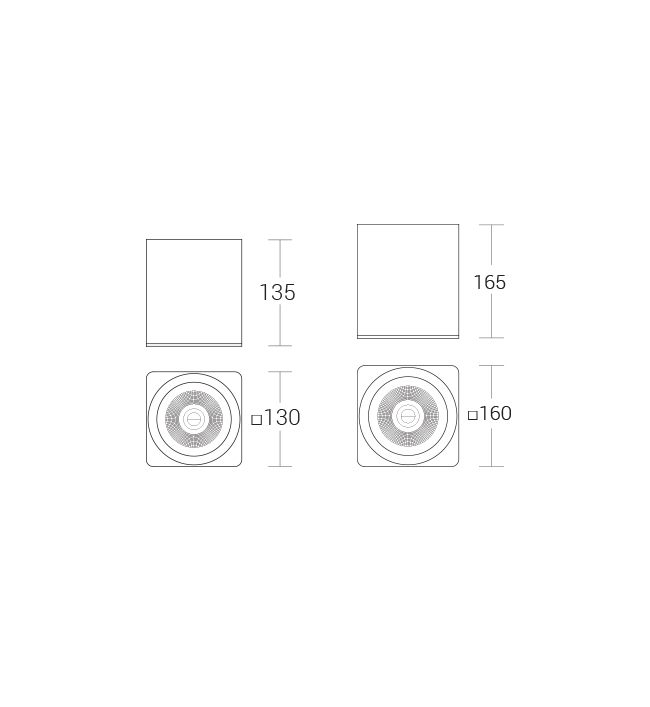

| ID | Wattage | Dimension | Mounting | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|---|---|
| 27349 | 25W LED WW,NW,CW BA:45°, Clear Polycarbonate | Sq. 130 x 135mm | 27349.pdf | 27349.txt | |||
| 27350 | 35W LED WW,NW,CW BA:50°, Clear Polycarbonate | Sq.160 x 165mm | 27350.pdf | 27350.txt |
Configuration Options
