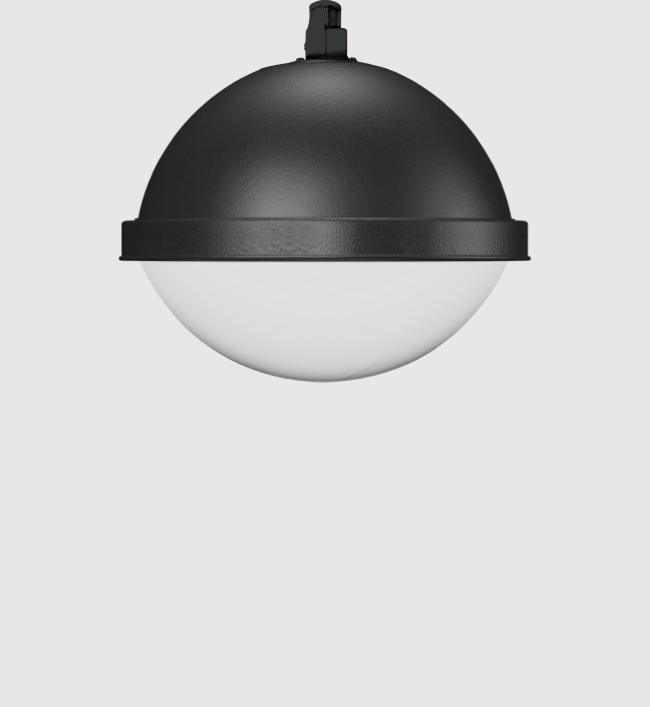

Magnum
Magnum Street Light combines refined aesthetics with robust engineering, delivering exceptional outdoor illumination with enduring reliability. Its fully weatherproof construction and securely protected optical compartment ensure superior resistance to dust, moisture and insects for consistent, long-lasting performance.
Product Description
• Luminaire body made of die-cast aluminium.
• Bowl shaped clear polycarbonate diffuser.
• Luminaire integrated with 200W LED.
• Suitable for mounting (adjustable from 0°-90° for upside-down and horizontal installation) on to 60-75mm dia tube.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• Prewired with LED driver and suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-24621-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K
Product Benefits
• Functionally versatile, strong and stable.
• Corrosion resistant and easy maintanance.
• Environmental friendly.
• Quick installation and low assembly costs.
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.
Area of Application

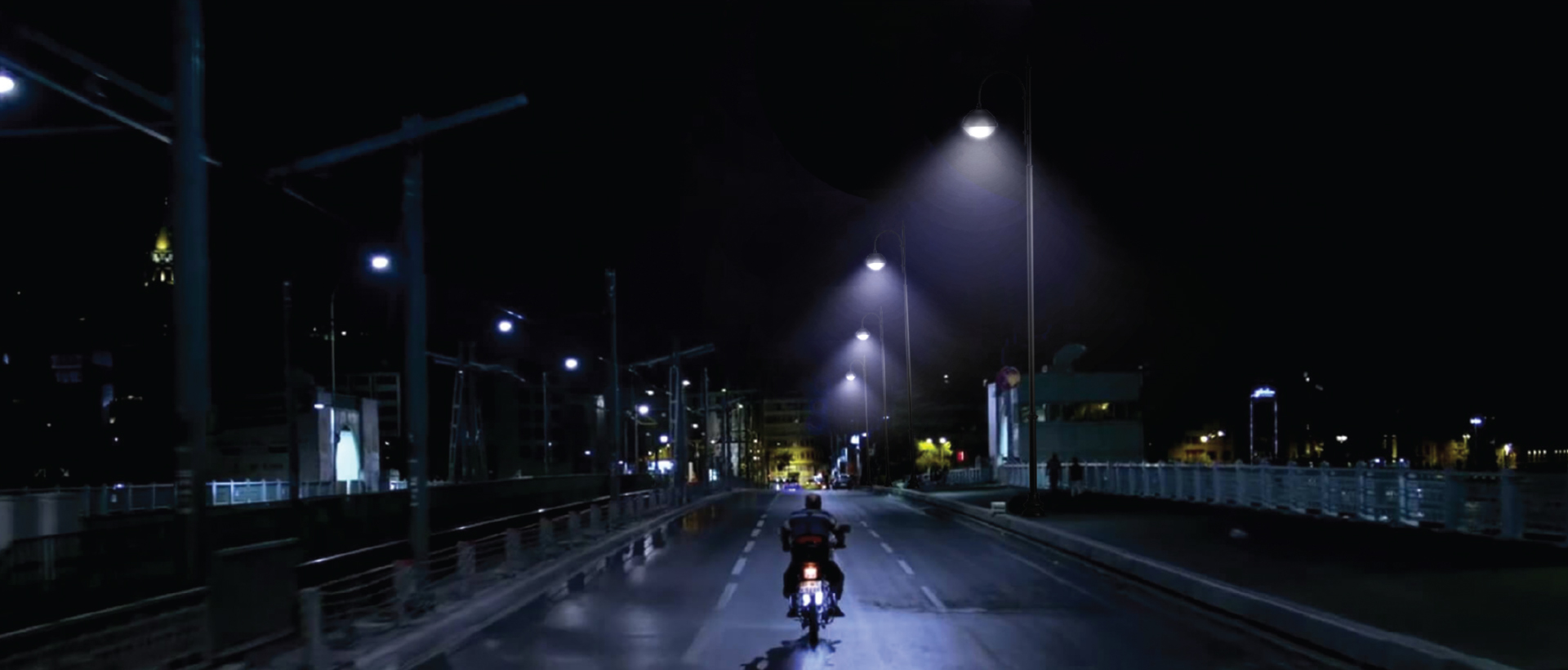

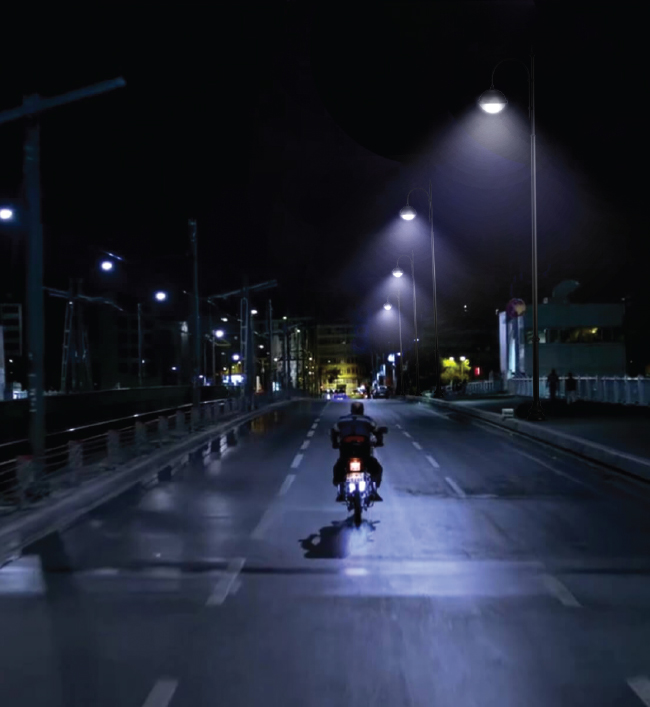

Street Lighting, Expressways, Private driveways, Residential Area Lighting, Courtyards, Public area lighting like parks & Squares
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
Product Description
• Luminaire body made of die-cast aluminium.
• Bowl shaped clear polycarbonate diffuser.
• Luminaire integrated with 200W LED.
• Suitable for mounting (adjustable from 0°-90° for upside-down and horizontal installation) on to 60-75mm dia tube.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• Prewired with LED driver and suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-24621-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K
Product Benefits
• Functionally versatile, strong and stable.
• Corrosion resistant and easy maintanance.
• Environmental friendly.
• Quick installation and low assembly costs.
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.
Area of Application
Street Lighting, Expressways, Private driveways, Residential Area Lighting, Courtyards, Public area lighting like parks & Squares
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey

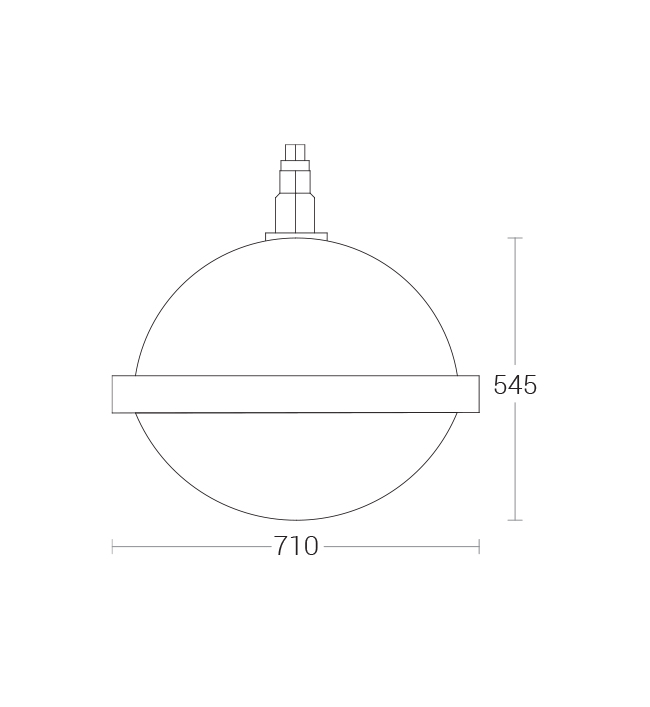

| ID | Wattage | Dimension | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|---|
| 24621 | 200W LED 3000K,4000K,5700K BA:Type II,Type III,Type IV, Clear Polycarbonate | Ø710 x 545mm | 24621.pdf | 24621.txt |
Configuration Options
